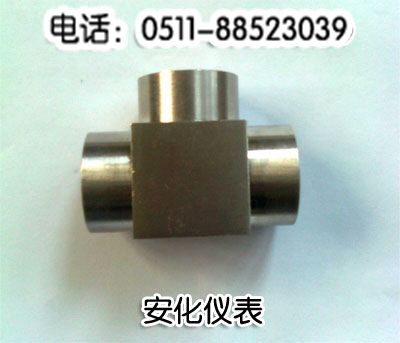

焊接式三通中間接頭
三通中間接頭
□適用介質：油、水、氣等非腐蝕性或腐蝕性介質;
□適用溫度：由使用介質和選用墊片而定t≤450℃ ;
□制造材料：20#，1Crl8Ni9Ti,304, 316L;
□配管要求：￠6—￠50普通級精度無縫鋼管.
|
Do
|
do
|
L
|
H
|
S
|
代號Code
|
|
6
|
3
|
82
|
41
|
17
|
YZG5-10-6
|
|
10
|
6
|
96
|
48
|
19
|
YZG5-10-10
|
|
14
|
8
|
116
|
58
|
27
|
YZG5-10-14
|
|
18
|
10
|
132
|
66
|
32
|
YZG5-10-18
|
|
22
|
15
|
138
|
69
|
36
|
YZG5-10-22
|
|
28
|
20
|
156
|
78
|
41
|
YZG5-10-28
|
|
34
|
25
|
176
|
88
|
50
|
YZG5-10-34
|
|
42
|
32
|
198
|
99
|
60
|
YZG5-10-42
|
|
50
|
40
|
218
|
109
|
70
|
YZG5-10-50
|
